دوربین مدار بسته داهوا HDCVI پنج مگاپیکسل DH-HAC-PT1500A-IL-A

Camera
Image Sensor 5 MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s;
NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.05 lux@F2.0 (Color, 30 IRE)
0.005 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)
Illuminator On/Off Control Auto;Manual
Illuminator Number 4 (Warm light);4 (IR light)
Angle Adjustment Pan: 0°–355°
Tilt: 0°–90°

Lens
Lens Type Fixed-focal
Auto Focus No
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F2.0
Field of View 2.8 mm: H: 112°; V: 58°; D: 134°
3.6 mm: H: 87°; V: 46°; D: 104°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.4 m (4.59 ft)

Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25
fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30
fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 ×
1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; DWDR
WDR DWDR
White Balance Auto;Area white balance
Gain Control Auto;Manual
Noise Reduction 2D NR
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)

Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC
port
Audio Input One channel built-in Mic

Power
Power Supply 12 VDC ± 30% (It is recommended to use a power
adapter to supply the power for one camera)
Power Consumption Max 6.4 W (12 VDC, IR on)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP66
Anti-corrosion Level Basic Protection

Structure
Casing Material Plastic

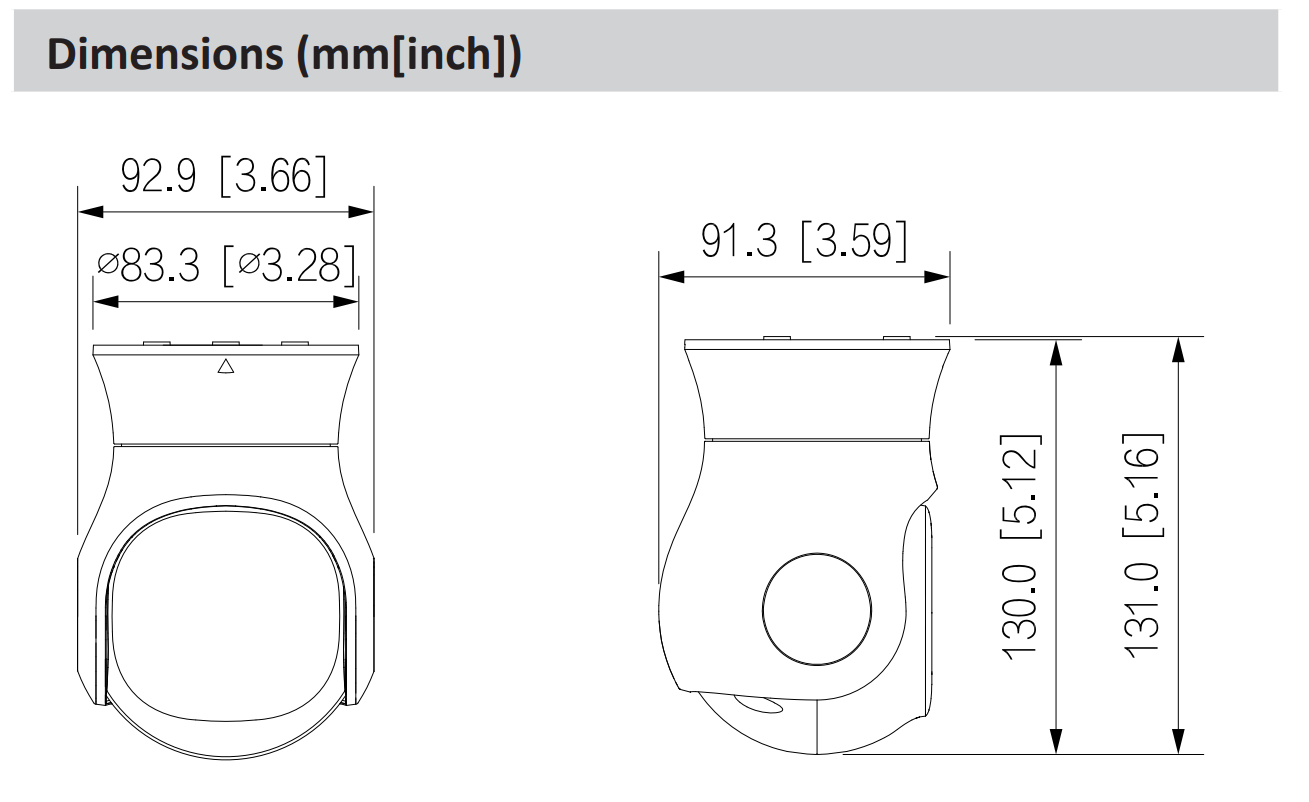

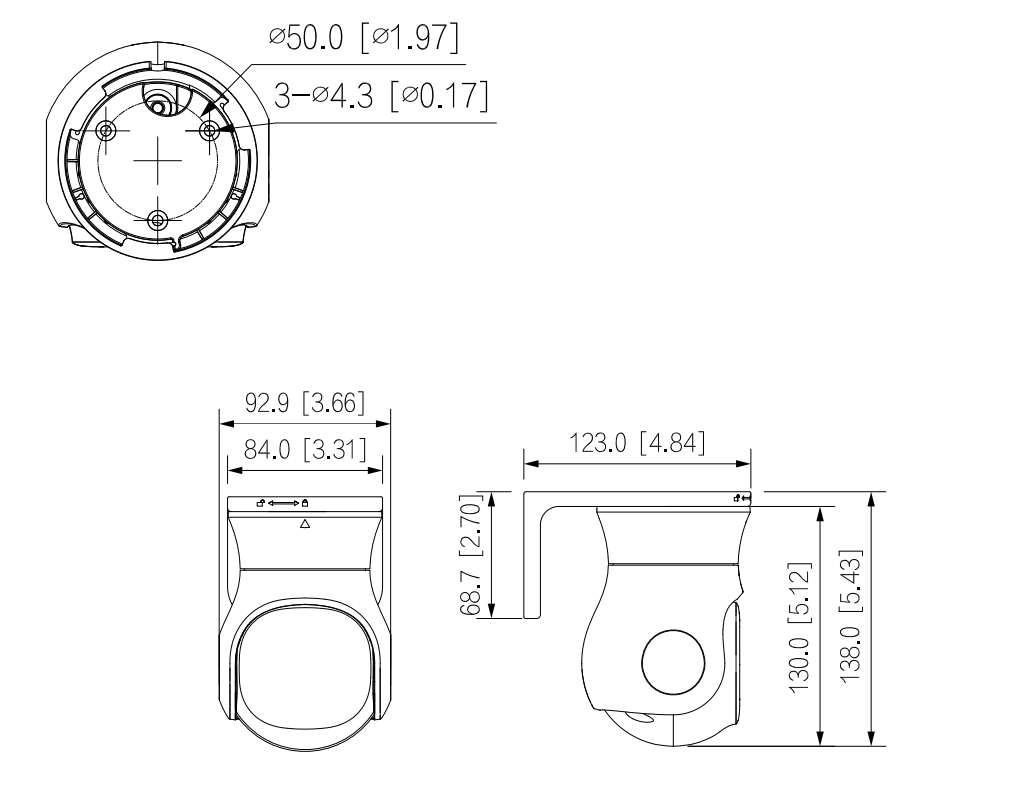

Product Dimensions 92.9 mm × 91.3 mm × 130 mm (3.66″ × 3.59″ × 5.12″)
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.64 kg (1.41 lb)

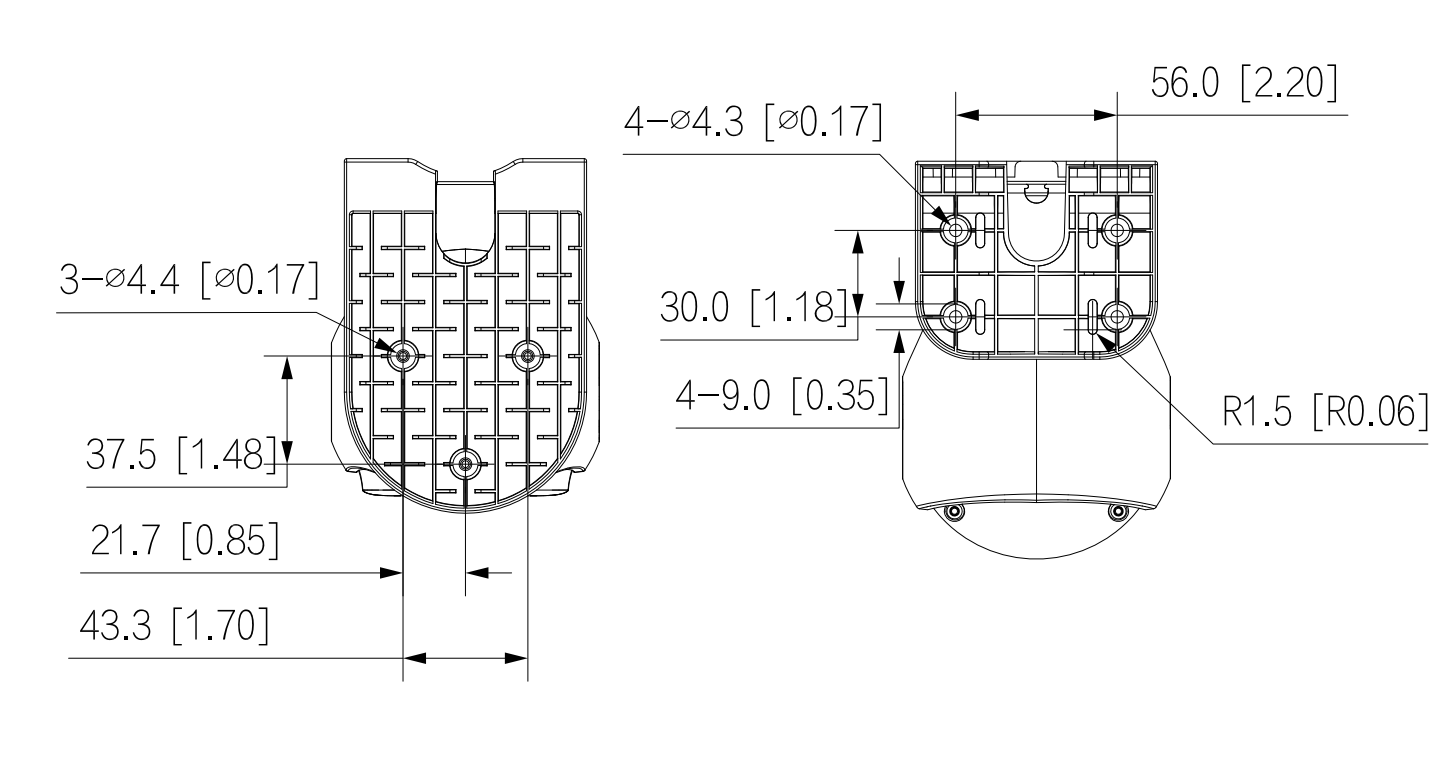

Installation Wall mount; ceiling mount; vertical pole mount
