دستگاه ضبط دیجیتال 16 کانال WizSense داهوا DH-XVR5116HS-I3

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI

QuickPick 2.0
QuickPick 2.0 AI by
Recorder (Number of
Channels)
2 channels

Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)
Advanced Mode: 2 channels, 10 IVS rules for each
channel
General Mode: 4 channels, 10 IVS rules for each
channe

Face Detection
Face Attributes 6 attributes
Face Detection
Performance of AI by
Recorder (Number of
Channels)
2 channels(up to 12 face images/s each channel)

Face Recognition
Face Database Capacity Up to 10 face databases with 10,000 images.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)
2 channels

SMD Plus
SMD Plus by Recorder
16 channels:
Secondary filtering for human and motor vehicle,
reducing false alarms caused by leaves, rain and lighting
condition change
SMD Plus by Camera 24 channels

AI Video Quality Analytics
AI Video Quality Analytics
by Recorder
16 channels: Supports detecting brightness levels, color
cast, defocus, overexposure, contrast levels, black and
white

Scene Changing
Scene Changing by
Recorder
1 channel

Irregular Black Block Masking
Irregular Black Block
Masking by Recorder
1 channel

Audio and Video
Analog Camera Input 16 BNC ports, supports HDCVI/AHD/TVI/CVBS autodetect
Camera Input
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps;
4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps;
720p@25/30fps.
2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x
1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps;
720p@25/30 fps.
3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30
fps; 720p@25/30 fps
IP Camera Input
Up to 24 channels of IPC access
8 IP channels by default + 16 channels (analog channels
are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth:
128 Mbps and outgoing bandwidth: 128 Mbps
*After IP extension is enabled, Video Quality Analytics,
Scene Changing, Face Recognition, Face Detection,
SMD, Perimeter Protection and QuickPick 2.0 cannot be
used.
Encoding Capacity
Main stream:
5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1
fps-12 fps)
5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1
fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30
fps)
Sub stream: D1/CIF@(1 fps–15 fps)
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output
1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720
when Face, IVS&SMD or Quick Pick is selected in AI
Mode.
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM

Network
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm
Server; P2P; Auto Registration; IP Search (Supports IP
camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox

Recording Playback
Record Mode General; alarm; motion detection; intelligent; POS
Recording Playback
1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is
selected in AI Mode.
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag
playback; smart playback

Alarm
General Alarm Motion detection; HDCVI alarm; camera external alarm;
network alarm; PIR alarm
Anomaly Alarm
Error (no disk, disk error, low space, low quota space;
network disconnection; IP conflict; MAC conflict); video
loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection;
SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm
output; audio; buzzer; log; preset; email

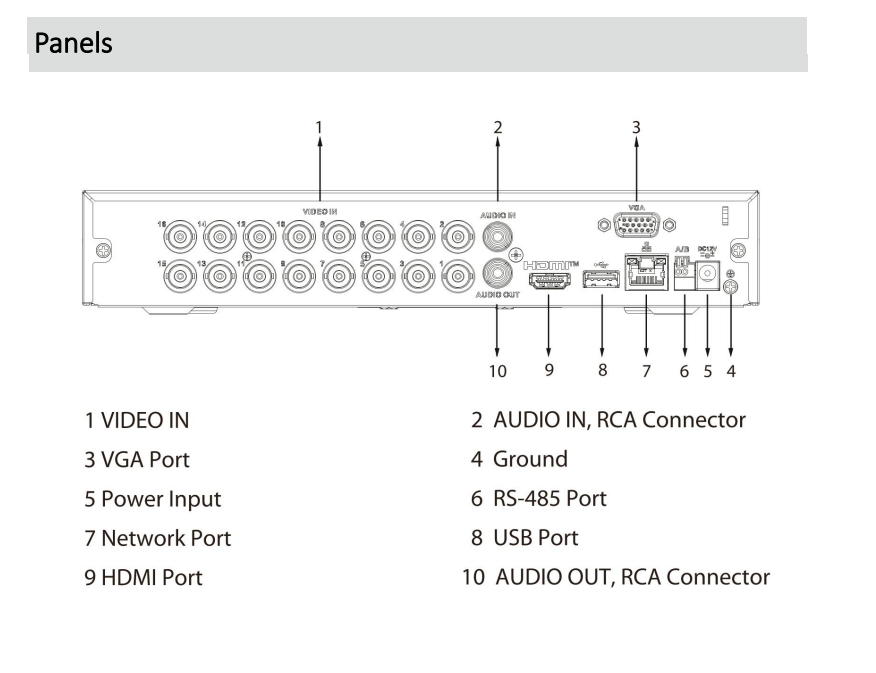

Ports
Audio Input 1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
Disk Interface 1 SATA port, up to 16 TB. This limit varies depending on
the environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General
Power Supply 12 VDC, 2 A
Power Consumption <12 W(without HDD)
Net Weight 1.17 kg (2.58 lb)
Gross Weight 1.57 kg (3.46 lb)

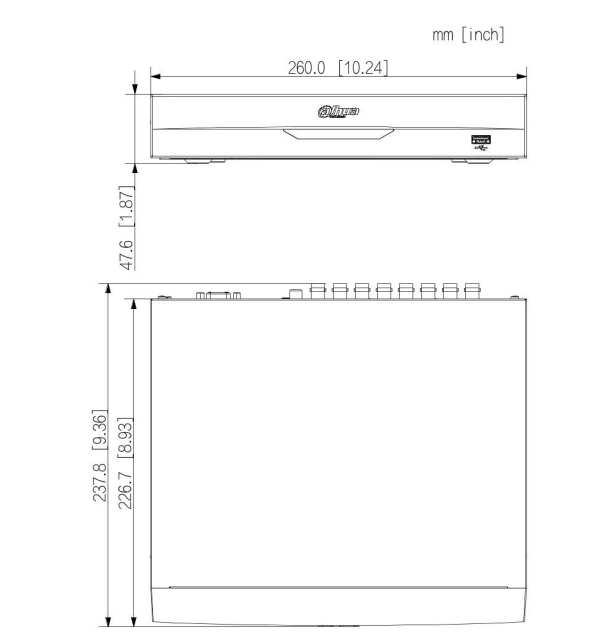

Product Dimensions 260.0 mm × 237.8 mm × 47.6 mm (10.24″ × 9.36″ ×
1.87″) (W × D × H)
Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm (13.11″ × 3.50″ ×
12.40″) (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop

Certifications
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
FCC: Part 15 Subpart B
