دوربین مداربسته هایک ویژن تحت شبکه دو مگاپیکسل DS-2CD1021G0-I

Camera
Image Sensor 1/2.9″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 94°, vertical FOV 51°, diagonal FOV 112°
4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Lens Mount M12
Iris Type Fixed
Aperture F2.2

DORI
DORI
2.8 mm, D: 48 m, O: 19 m, R: 9 m, I: 4 m
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 20 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR

Network
Security
Password protection, complicated password, watermark, basic and digest
authentication for HTTP, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client iVMS-4200
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wide Dynamic Range (WDR) Digital WDR
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client
software or web browser

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection, exception
Linkage Notify surveillance center

General
Power
12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Plastic

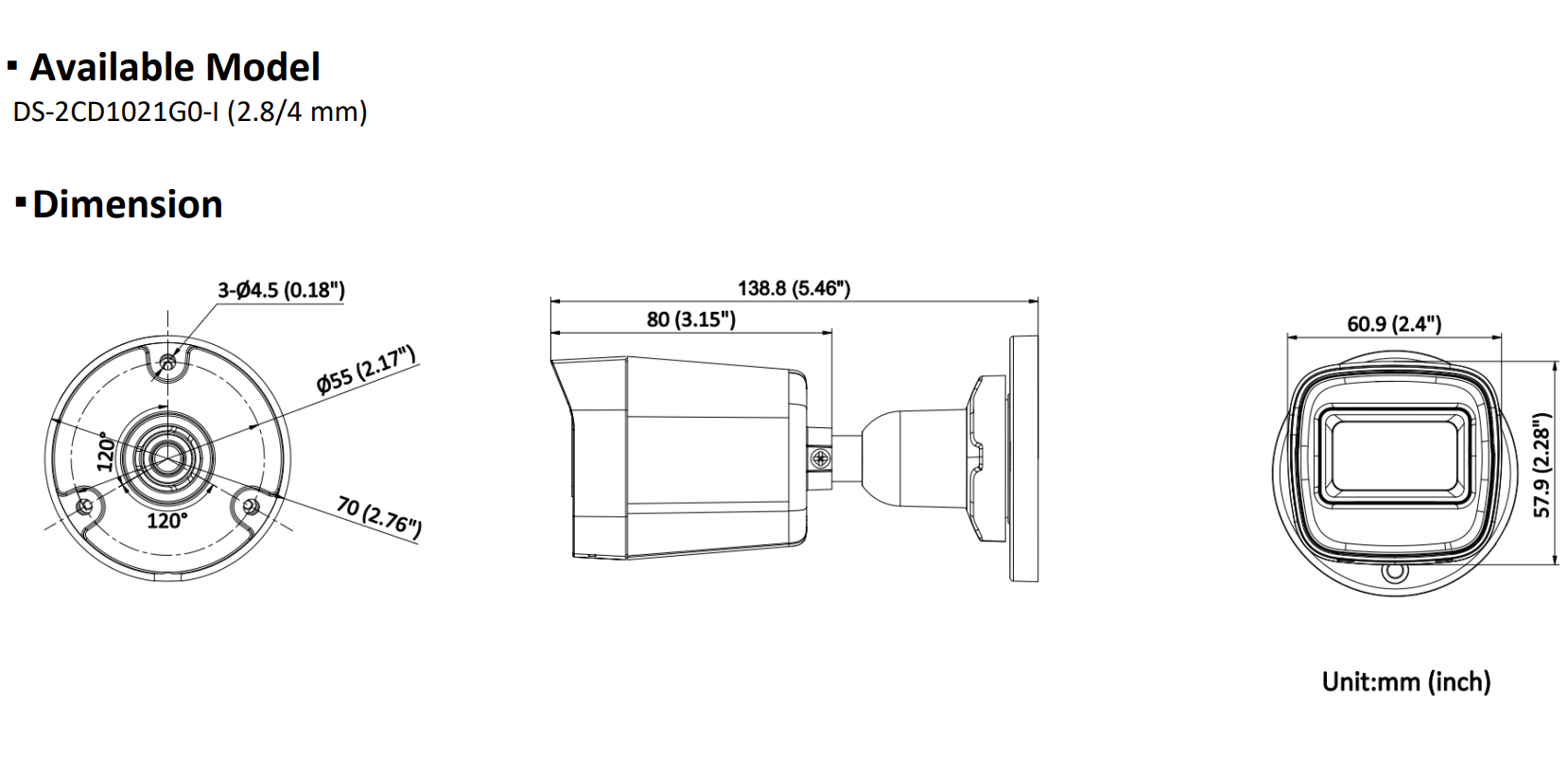

Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.5″ × 2.4″ × 2.3″)
Package Dimension 163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
Weight Approx. 175 g (0.4 lb.)
With Package Weight Approx. 250 g (1.1 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017

Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
