Camera
Image Sensor 1/2.8″ CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~330°, tilt 0~75°, roate 0~350°
Lens
Lens Type Motorized
Focus 2.8-12mm
Lens Mount 14
Aperture F1.6~F3.3, Fixed
FOV Horizontal field of view: 100.4°~26.8°
Illuminator
IR LEDs 18
IR Range Up to 30m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps
Max. Resolution 2592×1944
Main Stream
PAL: 20fps (2592 1944), 25fps (2592 1520, 2560 1440, 2304 1296, 1920 1080, 1280 720)
NTSC: 20fps (2592 1944), 25fps (2592 1520, 2560 1440), 30fps (2304 1296, 1920 1080,1280 720)
Sub Stream
PAL: 25fps (704 576, 704 288, 640 360, 352 288)
NTSC: 30fps (704 480, 704 240, 640 360, 352 240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes
Feature
Alarm Trigger Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A
Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR)
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI (IE), P2P(Mutually exclusive with Profile G)
Remote Connection 7
Client Easy7, EasyLive
Web Version Web5
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB
General
Firmware Version –
Web Client Language
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -35 ～65 , 0～95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 7.5W (12V) MAX: 9W (PoE)
Protection IP67, IK10, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A

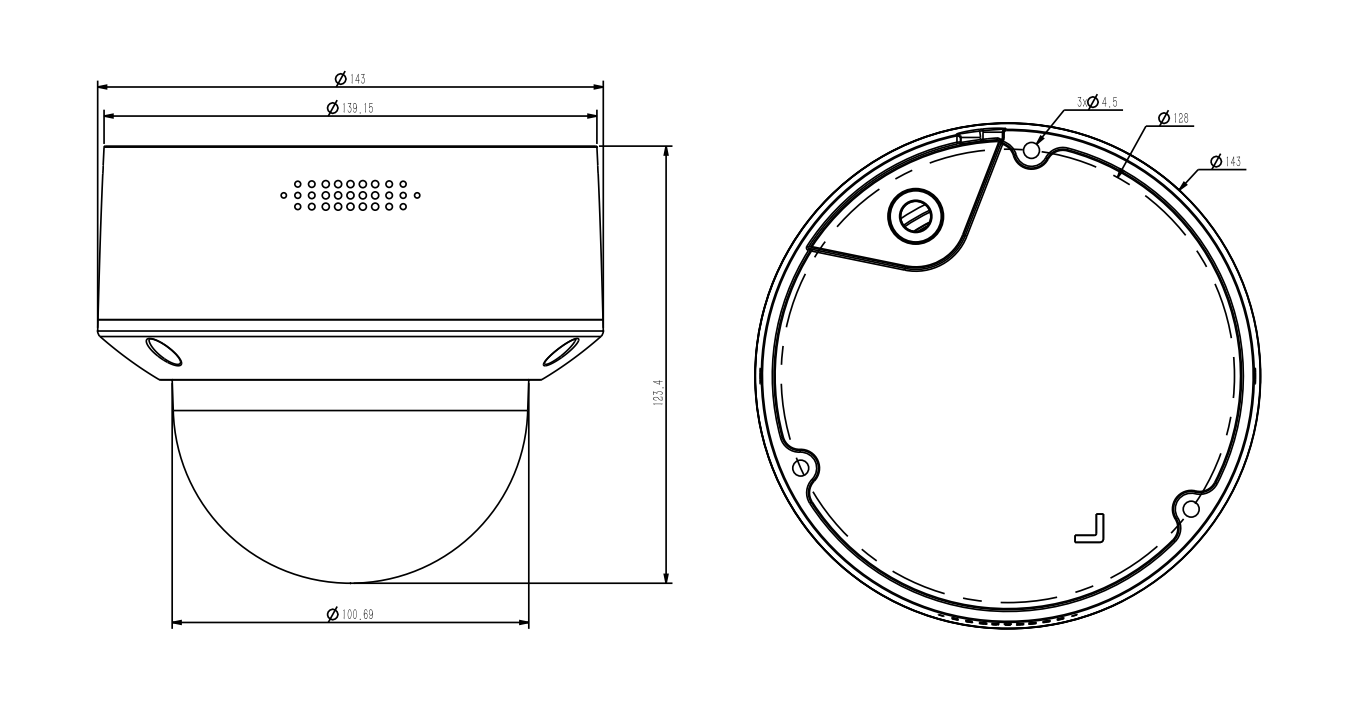

Dimensions 143 124mm ( 5.63 4.88inch)
Weight 0.86Kg (1.90lb)
